¶ Webhook Integration Guide
AVR Core provides comprehensive webhook support for real-time event tracking and integration with external systems. Webhooks allow you to receive instant notifications about call events, enabling you to build custom analytics, logging, and integration solutions.
¶ Overview
Webhooks are HTTP POST requests sent to your specified endpoint whenever specific events occur during a call session. This enables real-time monitoring, analytics, and integration with external systems like CRM platforms, analytics tools, or custom applications.
¶ Supported Webhook Events
¶ call_started
- Trigger: When a new call session begins
- Payload: Empty object
{} - Use Case: Initialize call tracking, start analytics, log call initiation
¶ call_ended
- Trigger: When a call session ends
- Payload: Empty object
{} - Use Case: Finalize call tracking, calculate call duration, update analytics
¶ interruption
- Trigger: When the AI response is interrupted by user speech
- Payload: Empty object
{} - Use Case: Track user engagement, measure interruption patterns, adjust AI behavior
¶ transcription
- Trigger: When speech is transcribed
- Payload: Transcription object with role and text
- Use Case: Log conversations, analyze speech patterns, build conversation history
¶ dtmf_digit (only for Asterisk v22+)
- Trigger: When the user presses a DTMF key
- Payload: The DTMF digit pressed
- Use Case: Handle keypad input during a call (e.g., hybrid voice + DTMF menus)
¶ Webhook Payload Format
All webhook requests follow a consistent JSON structure:
{
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"type": "call_started",
"timestamp": "2024-01-01T12:00:00.000Z",
"payload": {
// Event-specific data
}
}
¶ Payload Fields
- uuid: Unique identifier for the call session
- type: Event type (call_started, call_ended, interruption, transcription)
- timestamp: ISO 8601 timestamp of when the event occurred
- payload: Event-specific data object
¶ Event-Specific Payloads
¶ call_started
{
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"type": "call_started",
"timestamp": "2024-01-01T12:00:00.000Z",
"payload": {}
}
¶ call_ended
{
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"type": "call_ended",
"timestamp": "2024-01-01T12:05:30.000Z",
"payload": {}
}
¶ interruption
{
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"type": "interruption",
"timestamp": "2024-01-01T12:02:15.000Z",
"payload": {}
}
¶ transcription
{
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"type": "transcription",
"timestamp": "2024-01-01T12:01:45.000Z",
"payload": {
"role": "user|agent",
"text": "Hello, I need help with my account"
}
}
¶ dtmf_digit (only for Asterisk 22+)
{
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"type": "dtmf_digit",
"timestamp": "2024-01-01T12:02:15.000Z",
"payload": {
"digit": "1|2|3|..."
}
}
¶ Configuration
¶ Environment Variables
Configure webhook settings using the following environment variables:
¶ Required Configuration
- WEBHOOK_URL: The endpoint URL where webhook notifications will be sent
- WEBHOOK_SECRET: Secret key for webhook signature verification
¶ Optional Configuration
- WEBHOOK_TIMEOUT: Request timeout in milliseconds (default: 3000ms)
- WEBHOOK_RETRY: Number of retry attempts for failed requests (default: 0)
¶ Example Configuration
# .env file
WEBHOOK_URL=http://avr-webhook:9000/events # or your custom webhook url
WEBHOOK_SECRET=your-secret-key-here
WEBHOOK_TIMEOUT=5000
WEBHOOK_RETRY=3
¶ Security
¶ Webhook Signature Verification
When WEBHOOK_SECRET is configured, AVR Core includes the secret in the X-AVR-WEBHOOK-SECRET header for verification:
POST /events HTTP/1.1
Host: avr-webhook
Content-Type: application/json
X-AVR-WEBHOOK-SECRET: your-secret-key-here
{
"uuid": "550e8400-e29b-41d4-a716-446655440000",
"type": "call_started",
"timestamp": "2024-01-01T12:00:00.000Z",
"payload": {}
}
¶ Implementation Examples
To help you get started quickly, we provide ready-to-use examples that show how to connect AVR with external systems using webhooks.
These examples demonstrate how to capture events, parse data, and trigger actions in your own applications.
- GitHub Repository: agentvoiceresponse/avr-webhook
Contains sample webhook receivers and step-by-step instructions on how to integrate AVR with your stack.
¶ Error Handling and Retries
¶ Automatic Retry Logic
AVR Core implements automatic retry logic for failed webhook requests:
- Initial Request: Webhook is sent to the configured URL
- Timeout Handling: If no response within
WEBHOOK_TIMEOUT, request is considered failed - Retry Attempts: Up to
WEBHOOK_RETRYadditional attempts are made - Exponential Backoff: Retry attempts are spaced with increasing delays
- Final Failure: After all retries are exhausted, the webhook is logged as failed
¶ Error Logging
Failed webhook requests are logged with detailed error information:
[WEBHOOK][CALL_STARTED] Retry failed
Webhook Error:
Message: connect ECONNREFUSED avr-webhook:9000
Code: ECONNREFUSED
URL: http://avr-webhook:9000/events
Method: POST
Status:
¶ Best Practices for Webhook Endpoints
- Fast Response: Respond quickly (within timeout period)
- Idempotent Processing: Handle duplicate webhook deliveries
- Error Handling: Return appropriate HTTP status codes
- Logging: Log all webhook events for debugging
- Security: Verify webhook signatures when using secrets
¶ Common Issues and Solutions
¶ Webhook Not Received
- Check URL: Verify
WEBHOOK_URLis correct and accessible - Check Network: Ensure network connectivity between AVR Core and webhook endpoint
- Check Logs: Review AVR Core logs for webhook delivery errors
¶ Timeout Errors
- Increase Timeout: Set higher
WEBHOOK_TIMEOUTvalue - Optimize Endpoint: Improve webhook endpoint response time
- Check Load: Ensure webhook endpoint can handle request volume
¶ Authentication Failures
- Verify Secret: Check
WEBHOOK_SECRETconfiguration - Check Headers: Ensure webhook endpoint reads
X-AVR-WEBHOOK-SECRETheader - Test Verification: Implement and test signature verification logic
¶ Use Cases
Webhooks in AVR allow you to extend the platform beyond call handling, by sending events and call data to your own systems or third-party services.
This makes it possible to enrich analytics, update business tools in real time, and ensure continuous quality improvements.
Here are some common scenarios:

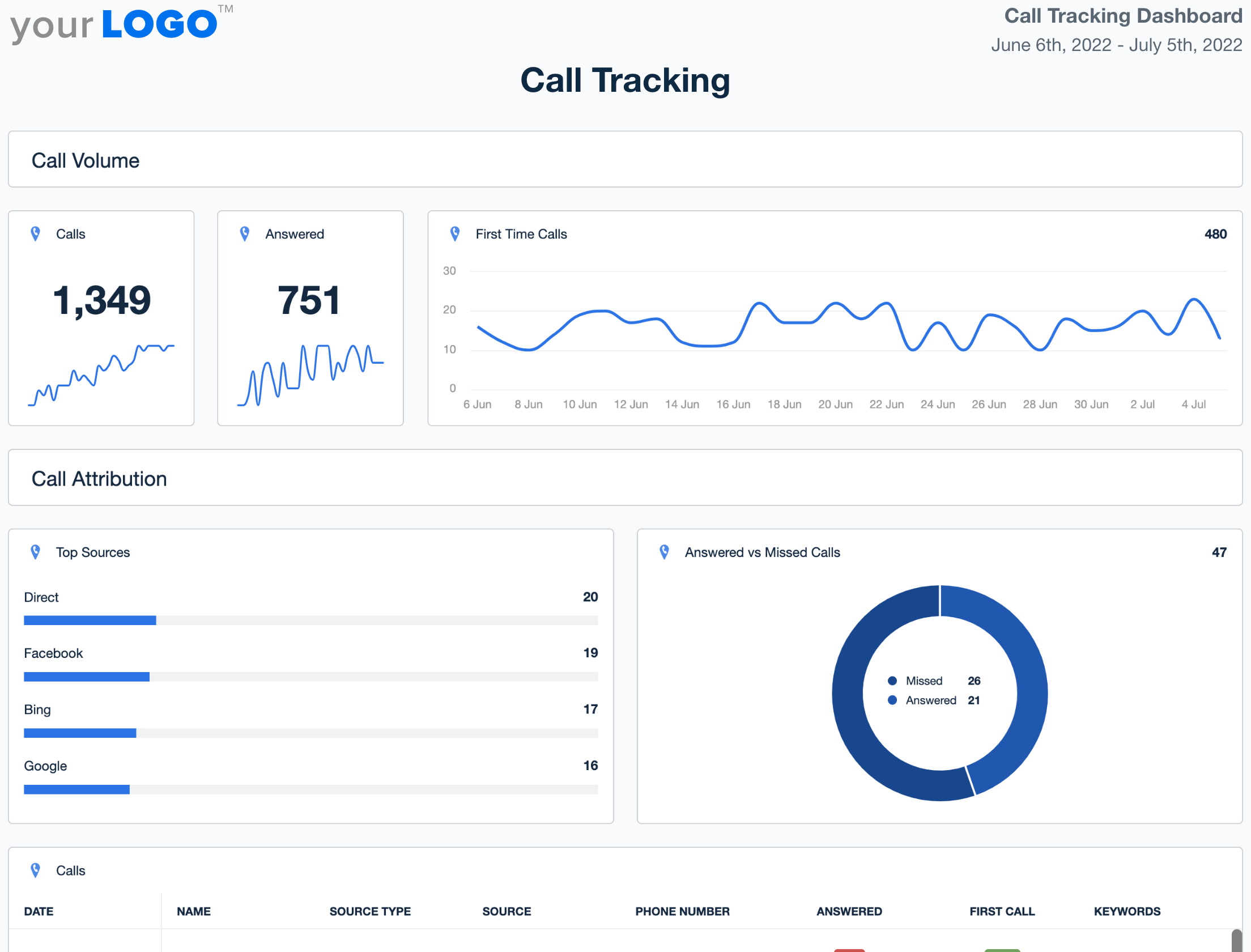

¶ Call Analytics
Track key metrics like call duration, frequency, and interaction patterns.
Useful for understanding customer behavior, optimizing agent performance, and measuring AI voicebot efficiency.
¶ CRM Integration
Automatically update customer profiles with call transcripts, notes, or outcomes.
This ensures your sales and support teams always have the latest information at hand.

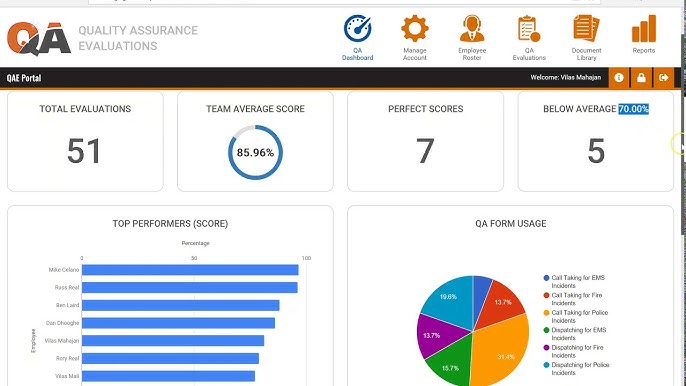

¶ Quality Assurance
Monitor AI performance, user satisfaction, and conversation quality.
Webhook data can be connected to dashboards or QA tools to spot issues early and continuously improve your conversational flows.
